CHF 1,290.00*
Content:
1 Stk.
Available, delivery time: 7-14 days
Product number:
LRTFMO-09/20
EAN/GTIN:
7611507999914
Product information "Slatted base Trioflex Motor "

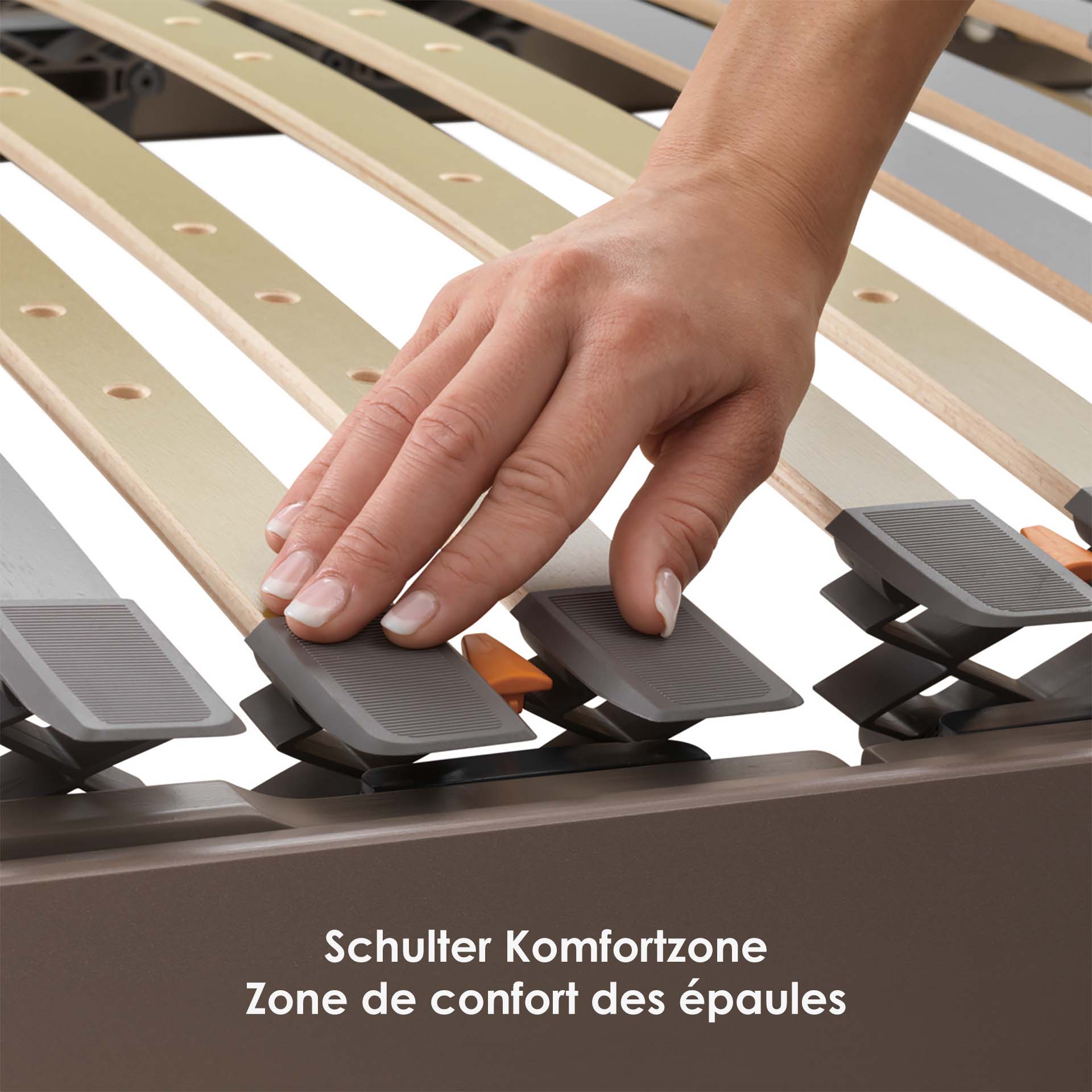

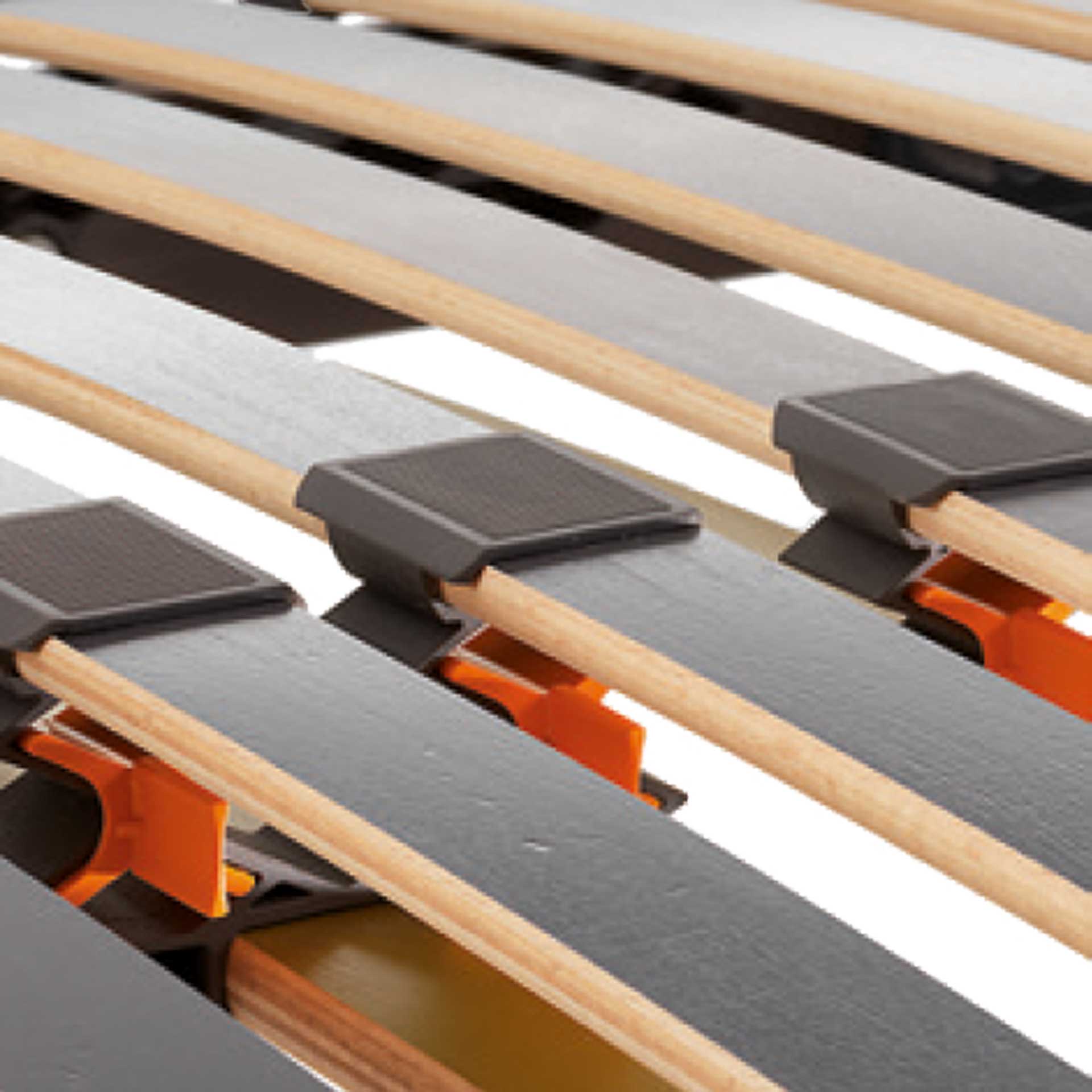

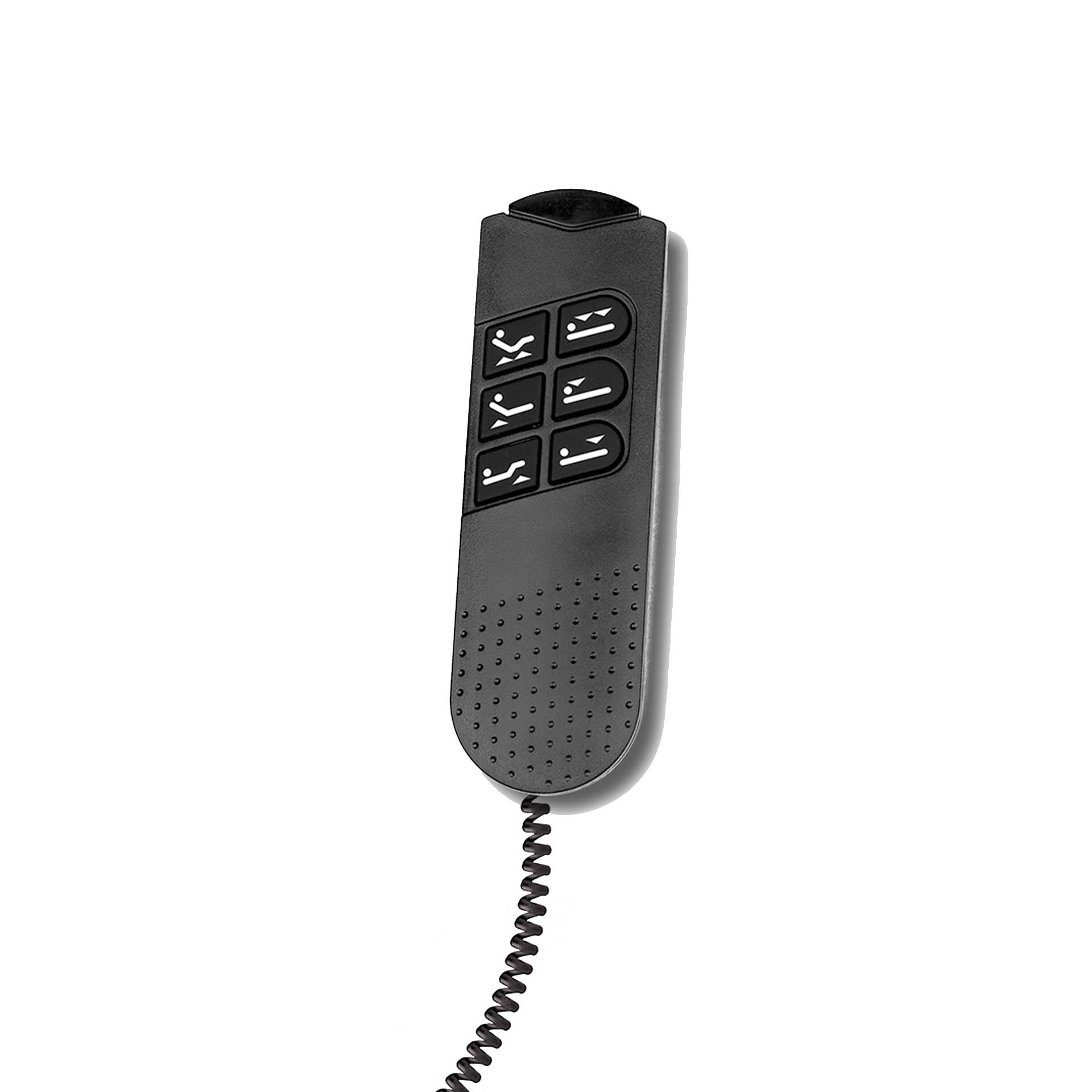

The Trioflex Motor slatted base is equipped with 2 motors for head and foot adjustment, cable remote control, mains isolation and emergency lowering. The insert frame offers outstanding sleeping comfort and fulfils the highest quality requirements. The insert frame is made of solid beech wood with a plywood structure and is fitted with 42 flexible and extremely permanently elastic TPE caps. The slatted base has a shoulder comfort zone with mechanical lowering, ideal for side sleepers, as well as a self-regulating centre zone with firmness regulation clips for the pelvic comfort zone.
- The slatted base is suitable for any mattress and has an installation height of approx. 9 cm.
- Radio remote controls, foot and side rails are optionally available.
- Required ground clearance: approx. 14 cm - installation height of approx. 9 cm
Please note that these are gross dimensions. The effective internal dimensions are 1 cm less in width and approx. 3 cm less in length, so that it fits into standard bed frames.
- The slatted base is suitable for any mattress and has an installation height of approx. 9 cm.
- Radio remote controls, foot and side rails are optionally available.
- Required ground clearance: approx. 14 cm - installation height of approx. 9 cm
Please note that these are gross dimensions. The effective internal dimensions are 1 cm less in width and approx. 3 cm less in length, so that it fits into standard bed frames.
| Cap position: | bar-covering |
|---|---|
| Colour group: | brown |
| Format (dimensions): | 90 x 200 cm |
| Height: | 9 cm |
| Label: | FSC |
| Length: | 200 cm |

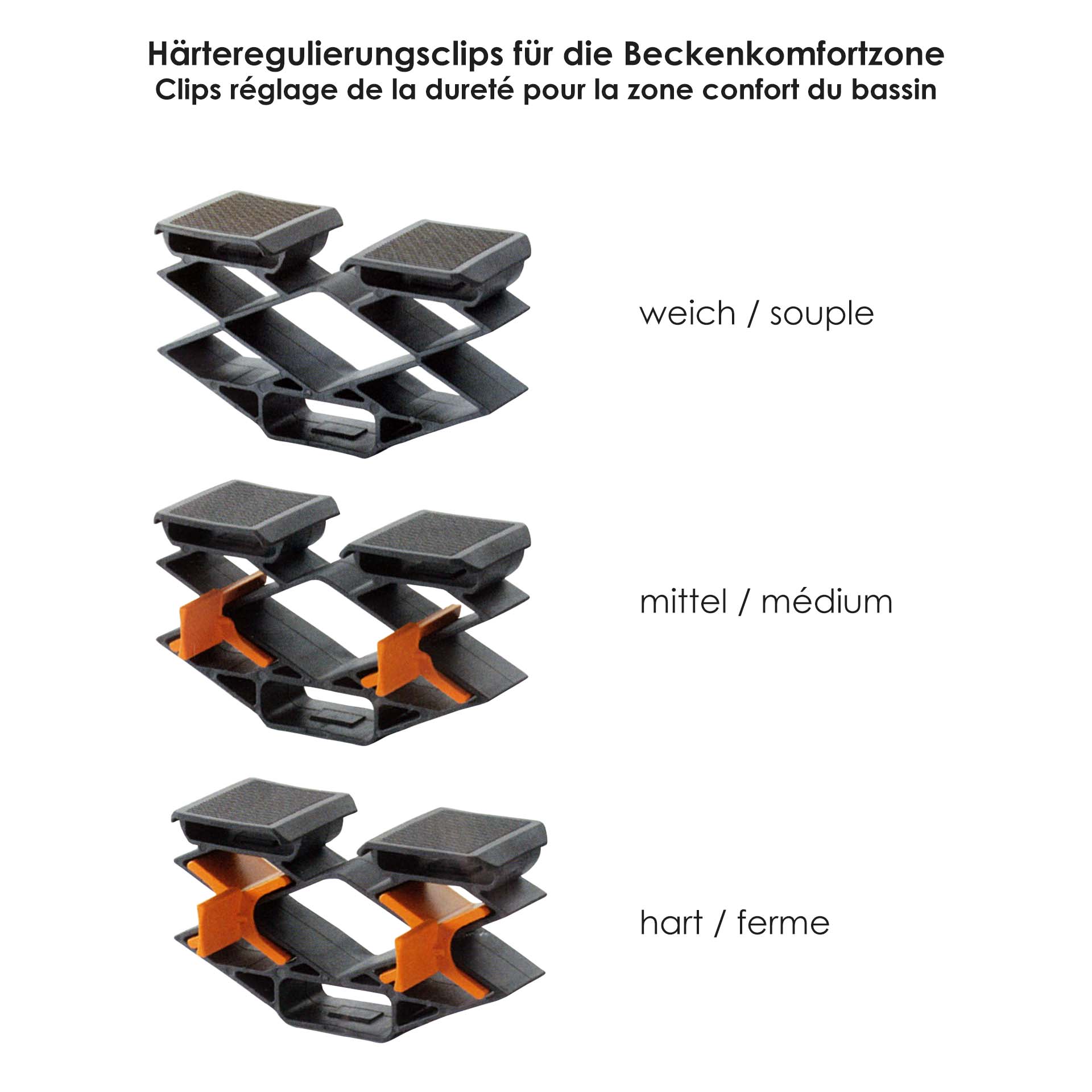

| Lying firmness adjustment: | Shoulder comfort zone with mechanical lowering, Self-regulating centre zone, Firmness adjustment clips for pelvic comfort zone |
| Material group: | Wood, Metal, Plastic |
| Maximum load: | 130 kg |
| Number of comfort zones: | 5 |
| Number of slats: | 42 |
| Origin: | Austria |
| Origin of the wood: | Europe |
| Product type: | Slatted base |
| Shipping: | Forwarding agency |
| Slatted frame adjustability: | Head, Feet, motorised |
| Width: | 90 cm |
| Wood: | Beech |
| internal measurement: | 89 x 197 cm |
| suitable mattress size: | 90 x 200 cm |
Login

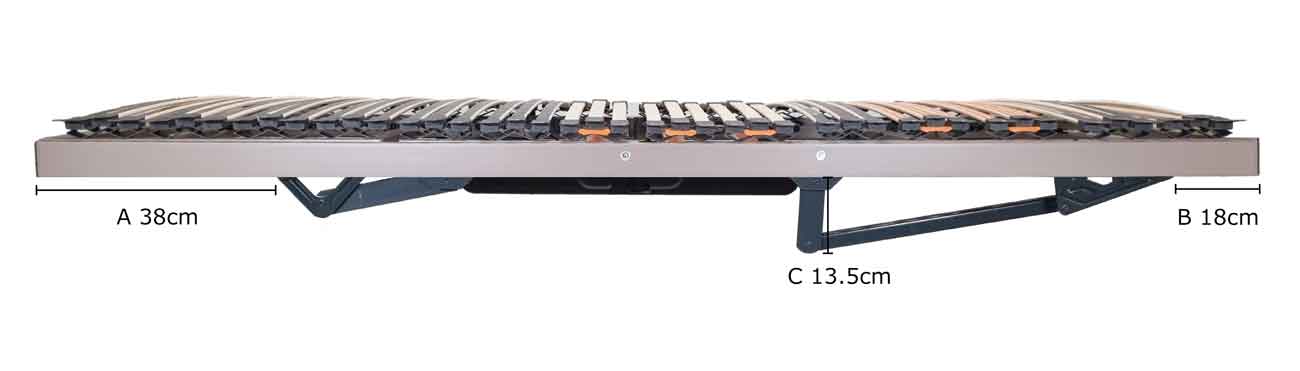

Please note when installing in a bed
- The ground clearance (C) must be at least 13.5 cm
- Crossbars or corner fittings of the bed may be a maximum of 18 cm in the head area.
- Crossbars or corner fittings of the bed may be a maximum of 38 cm in the foot area .
